Cannulated Compression Screws

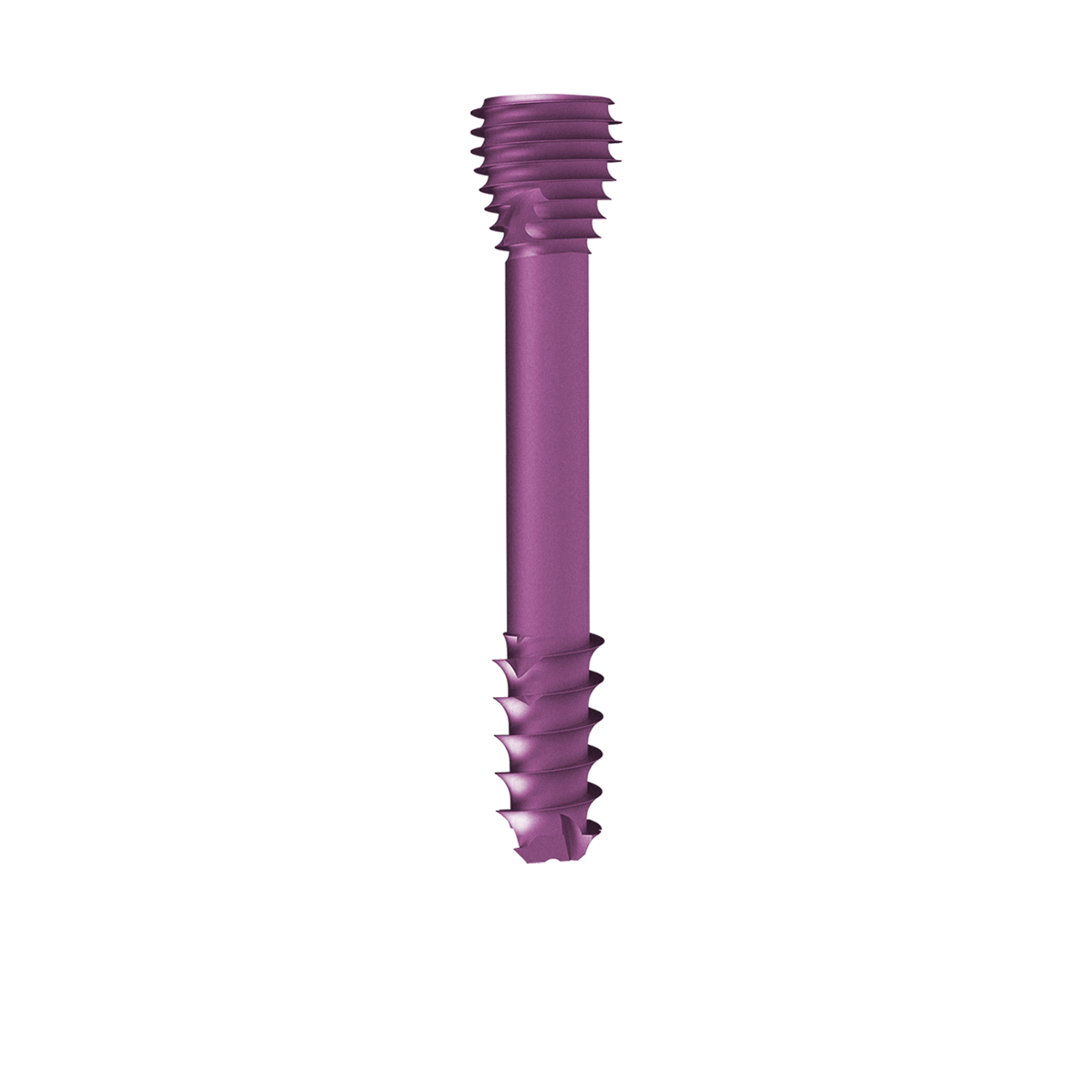

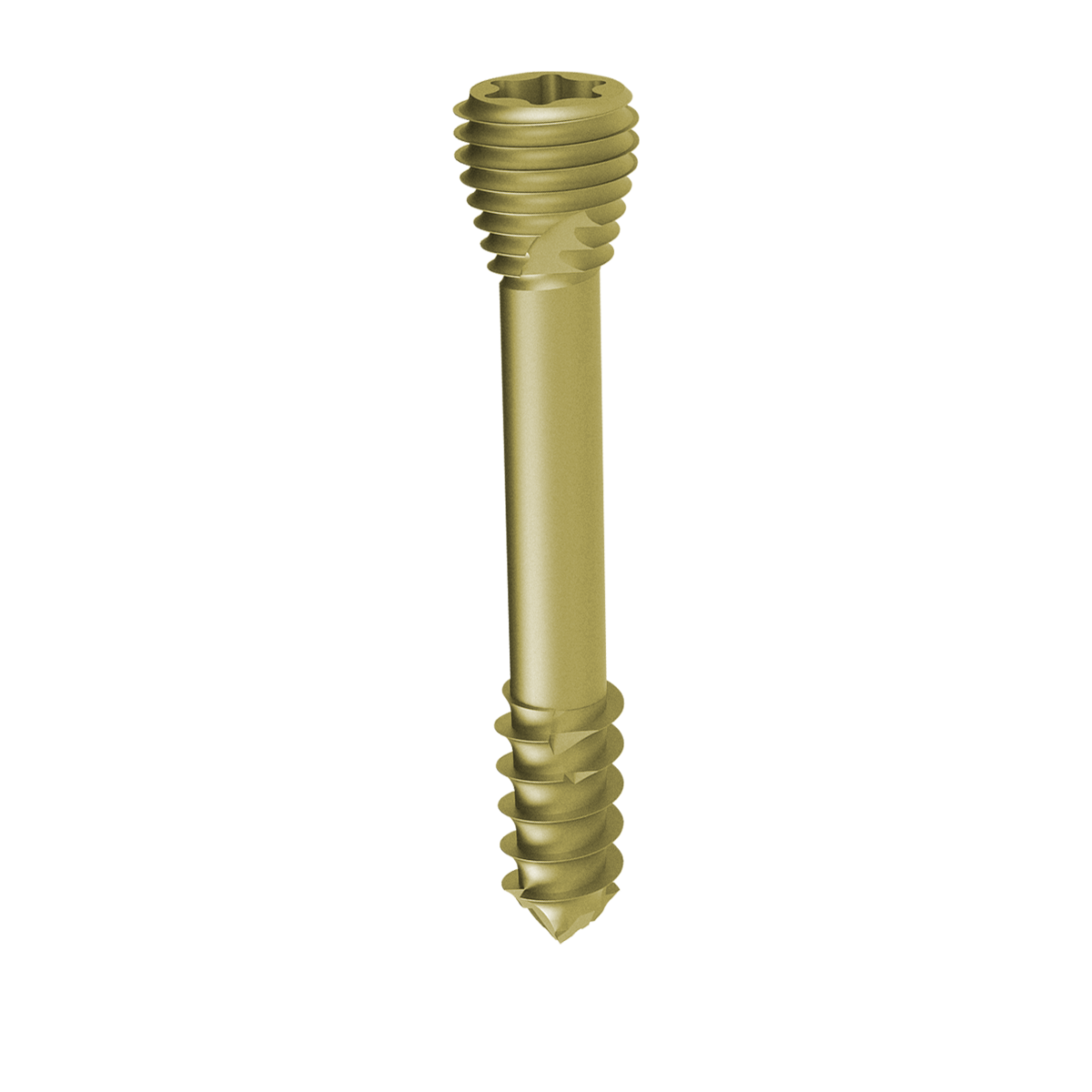

HERBERT HFS
Characteristics:
-Head with notches for easy extraction.
-Tip with self-drilling and self-tapping edges for facilitate implantation.
-Thread pitch in head and stem, for closure and controlled compression of diastasis in the fracture line.
-Quality Raw Material Titanium Alloy (Ti6Al4V ELI, ASTM F136)
| Cannulated Compression Herbert Screws (HFS) | ||
| 1.7mm / Code. 259 | 2.3mm / Code. 238 | 3.0mm / Code. 239 |
| Length | Length | Length |
|
6mm 7mm 8mm 9mm 10mm 11mm 12mm 13mm 14mm 15mm 16mm 18mm 20mm |
10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm |
10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm 32mm 34mm 36mm 38mm 40mm |

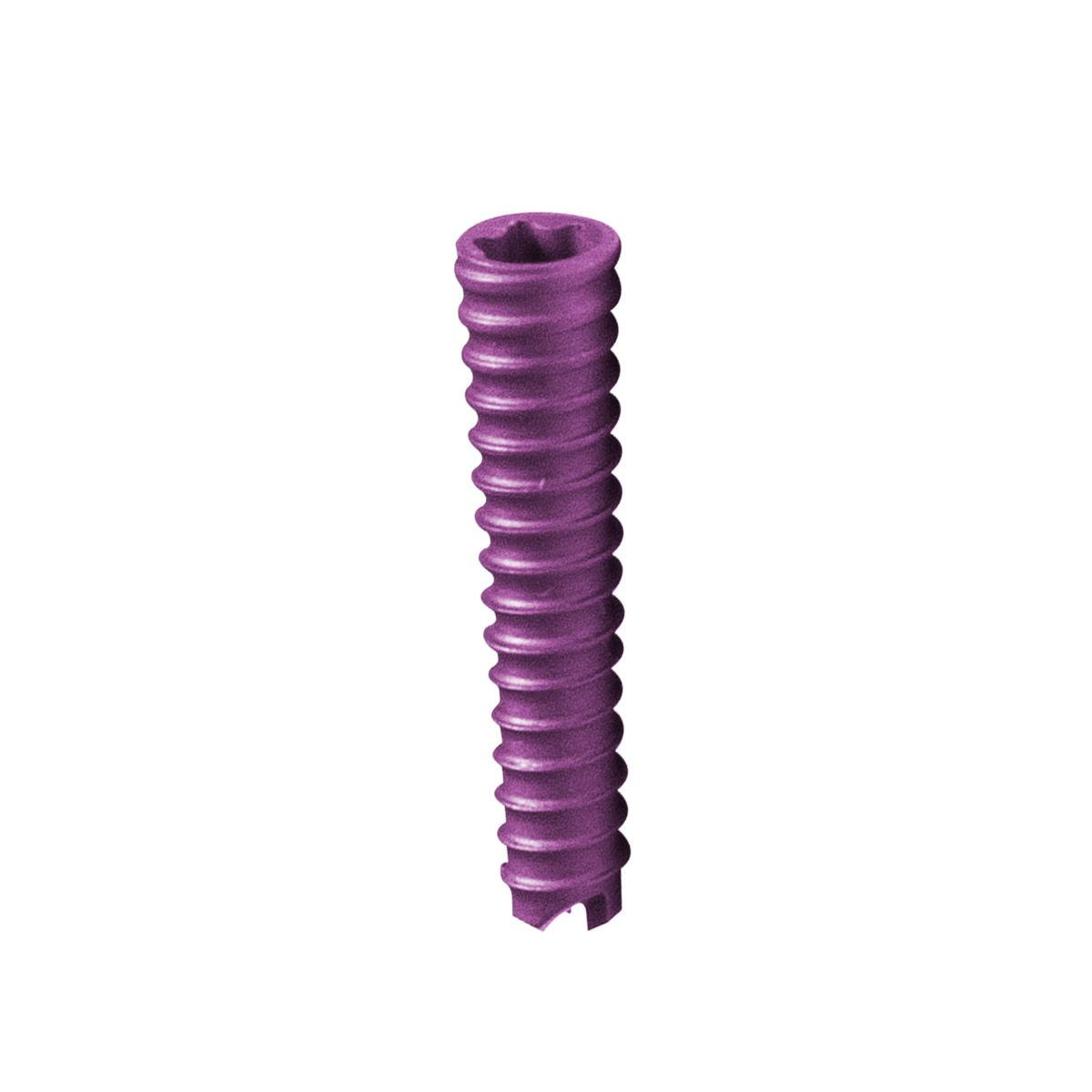

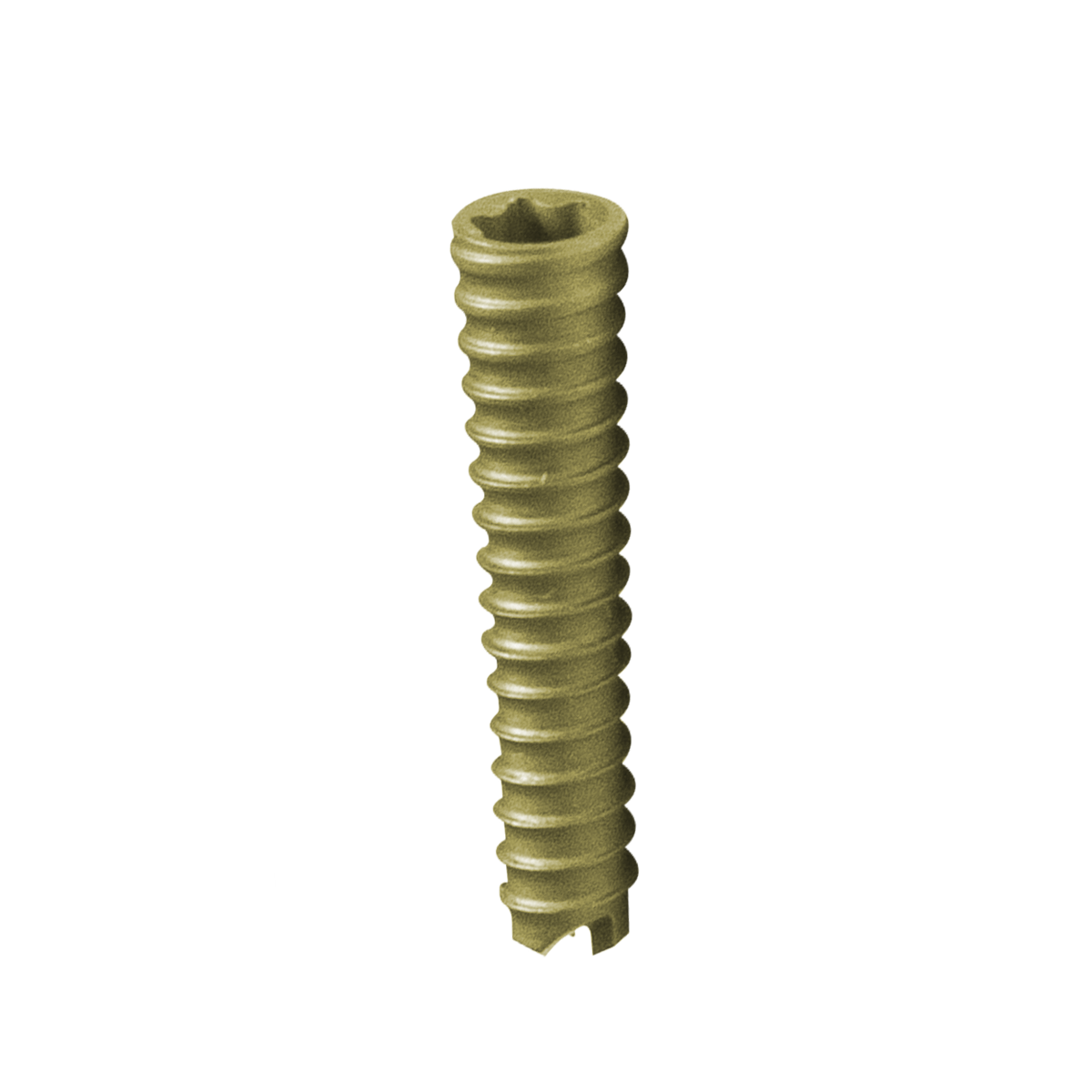

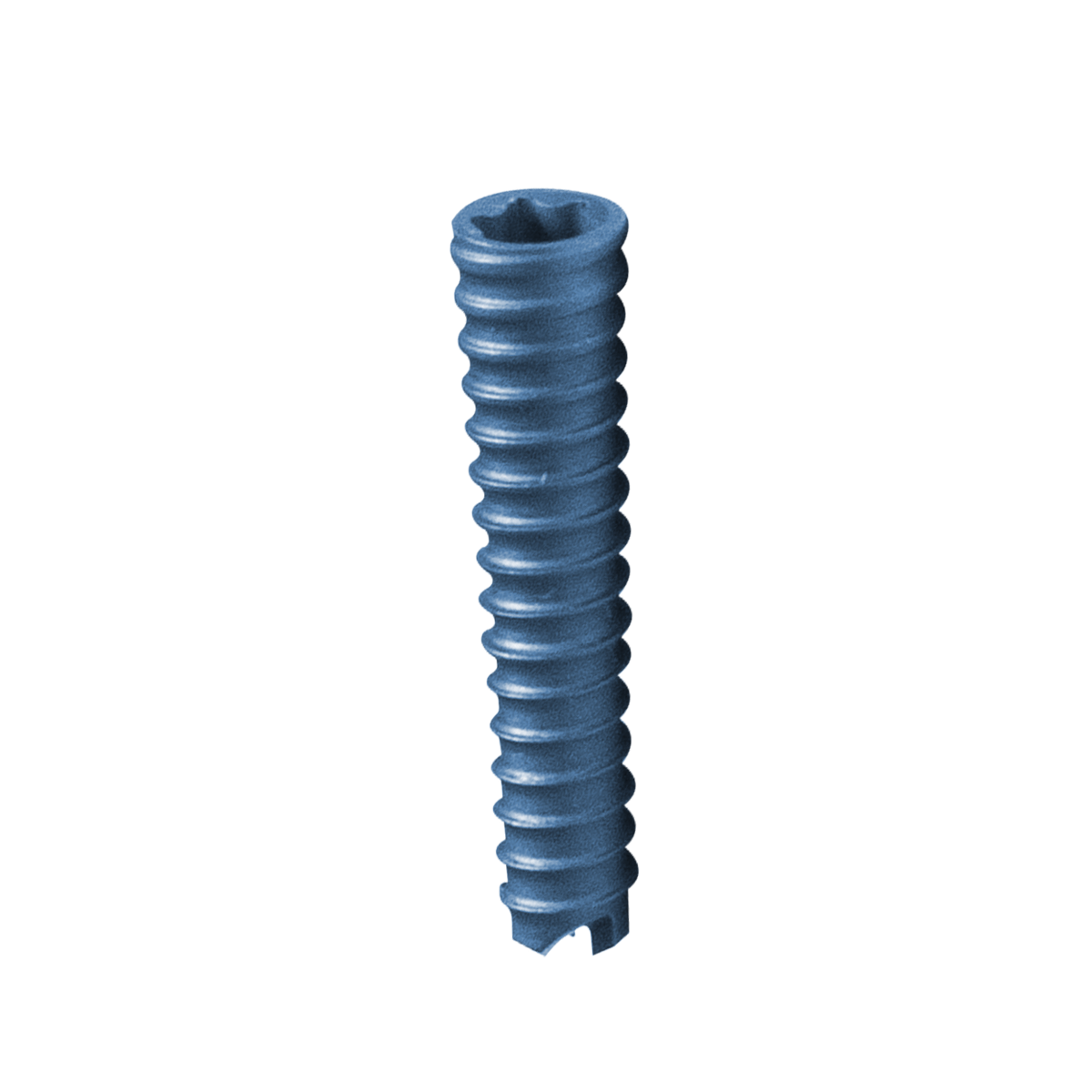

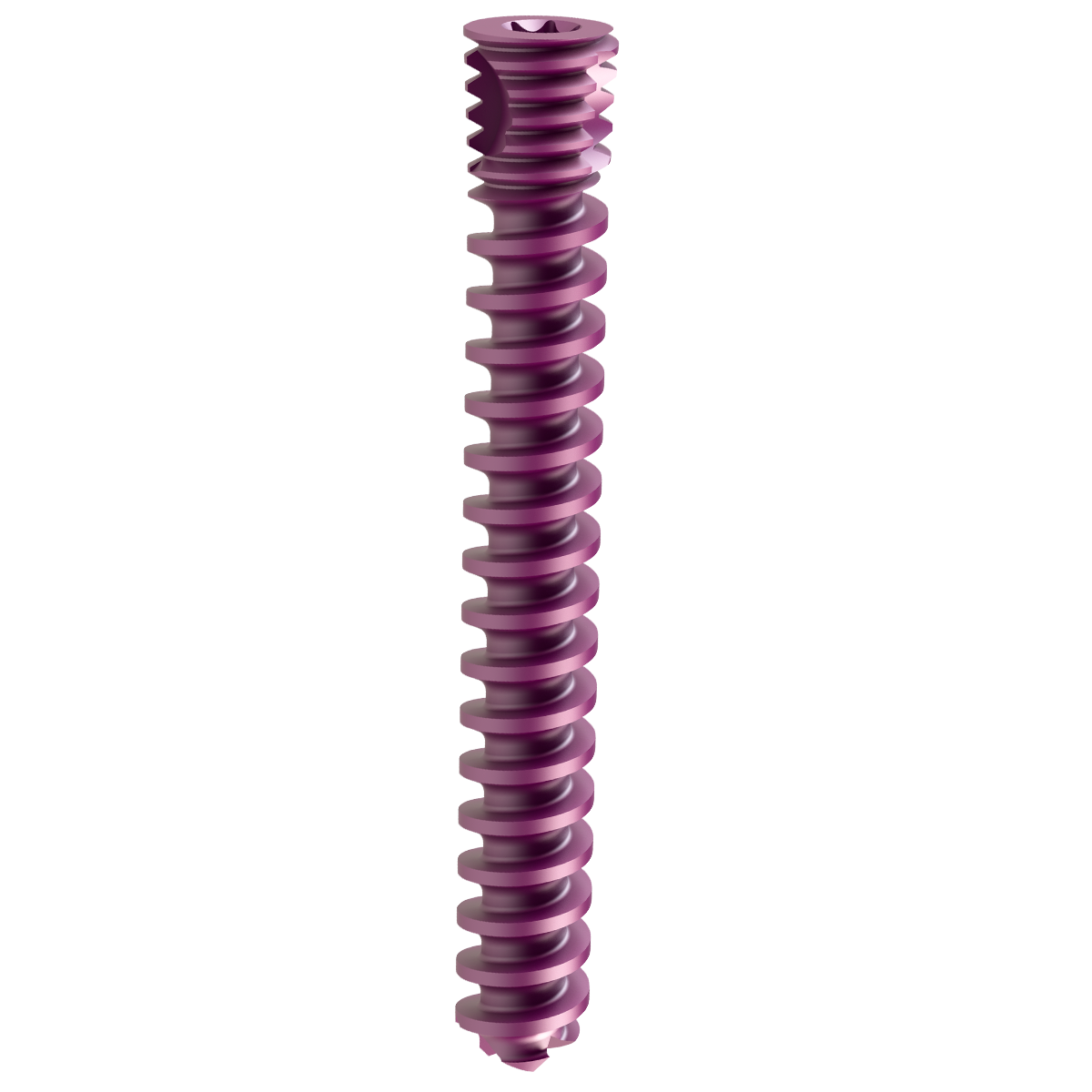

HEADLESS THS
Characteristics:
-THS is the next generation of screws headless fully threaded.
-Conical design for higher compression.
-Tip with self-drilling and self-tapping edges to facilitate the implatation.
-Quality Raw Material Titanium Alloy (Ti6Al4V ELI, ASTM F136).
| Cannulated Compression Headless Screws (THS) | |||||
| 2.5mm / Code. 244 | 3.5mm / Code. 240 | 4.0mm / Code. 241 | 4.5mm / Code. 242 | 5.0mm / Code. 243 | 7.0mm / Code. 261 |
| Length | Length | Length | Length | Length | Length |
|
8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm |
10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm |
16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm 32mm 34mm |
20mm 22mm 24mm 26mm 28mm 30mm 35mm 40mm 45mm 50mm |
25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm |
40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 120mm |
