ELIX Proximal Femoral Nail Antirotation
Characteristics:
-Quality Raw Material Titanium Alloy (Ti6Al4V ELI, ASTM F136).
-Innovative locking system offering high rotational and angular stability.
-Proximal orifice with ovoid design to prevent rotation.

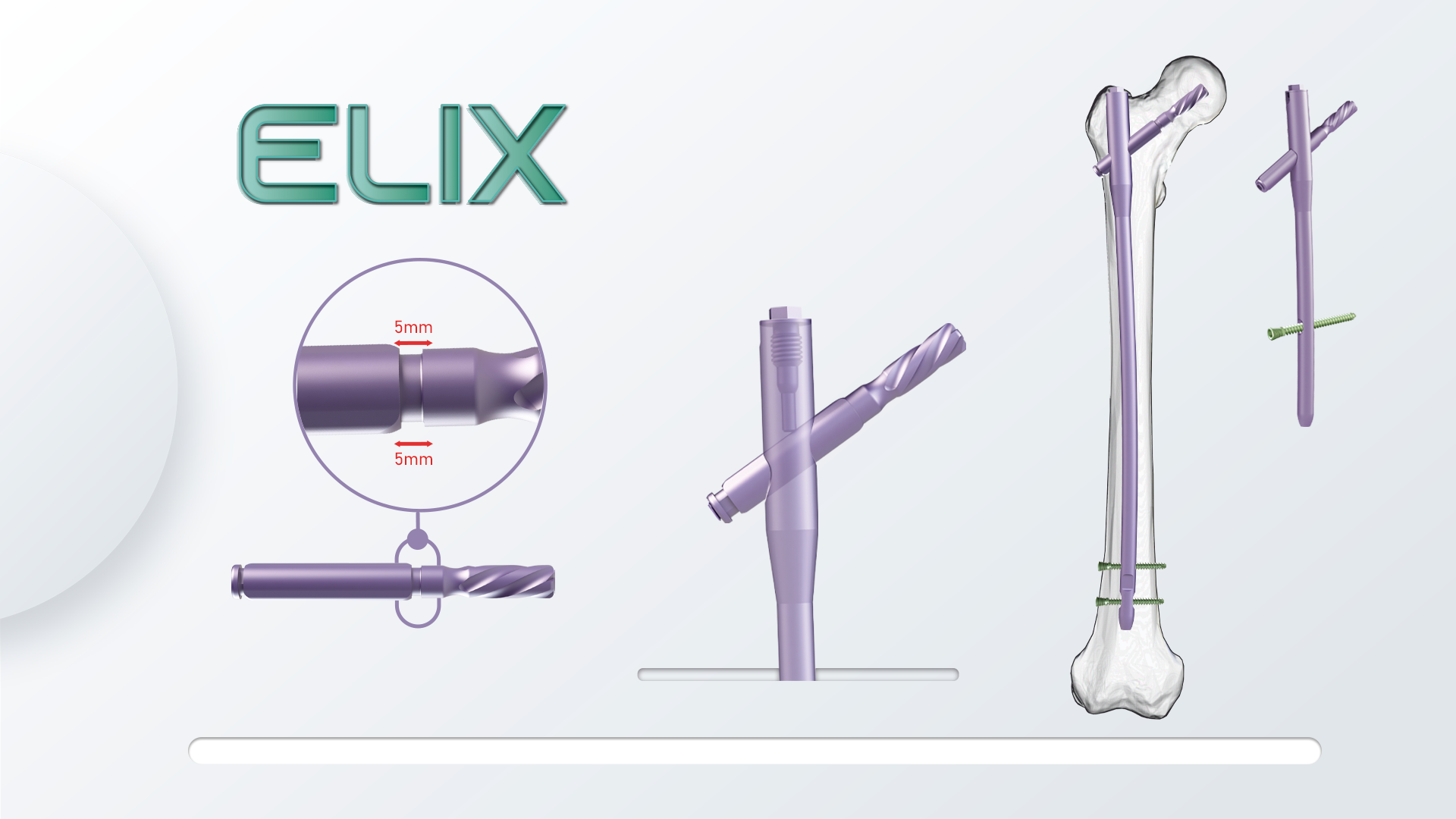

-Blade with 5mm movement through the sleeve allows interfragmentary compression with a more dynamic locking at the time of femur reduction.
– Blade hole with 125° of angulation.
-The design of the end cap allows locking of the subtrochanteric screw sleeve, preventing subsequent slippage.
– Static and dynamic locking holes on the distal part.

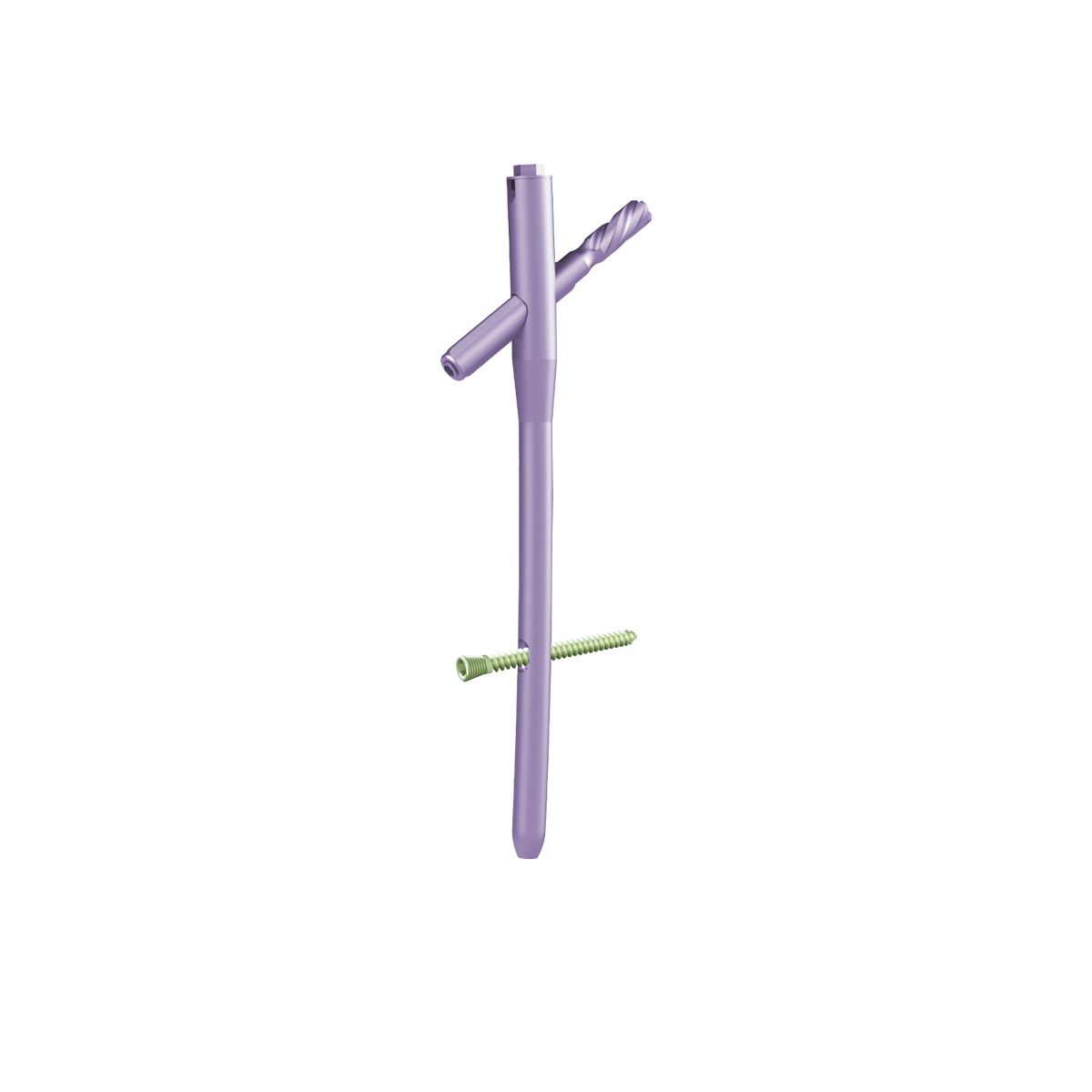

| ELIX Proximal Femoral Nail Antirotation | Small | ||||
| Length | Diameter 9mm | Diameter 10mm | Diameter 11mm | Diameter 12mm |
| 170mm | Code 277.170 | Code 278.170 | Code 279.170 | Code 280.170 |
| 200mm | Code 277.200 | Code 278.200 | Code 279.200 | Code 280.200 |
| 240mm | Code 277.240 | Code 278.240 | Code 279.240 | Code 280.240 |

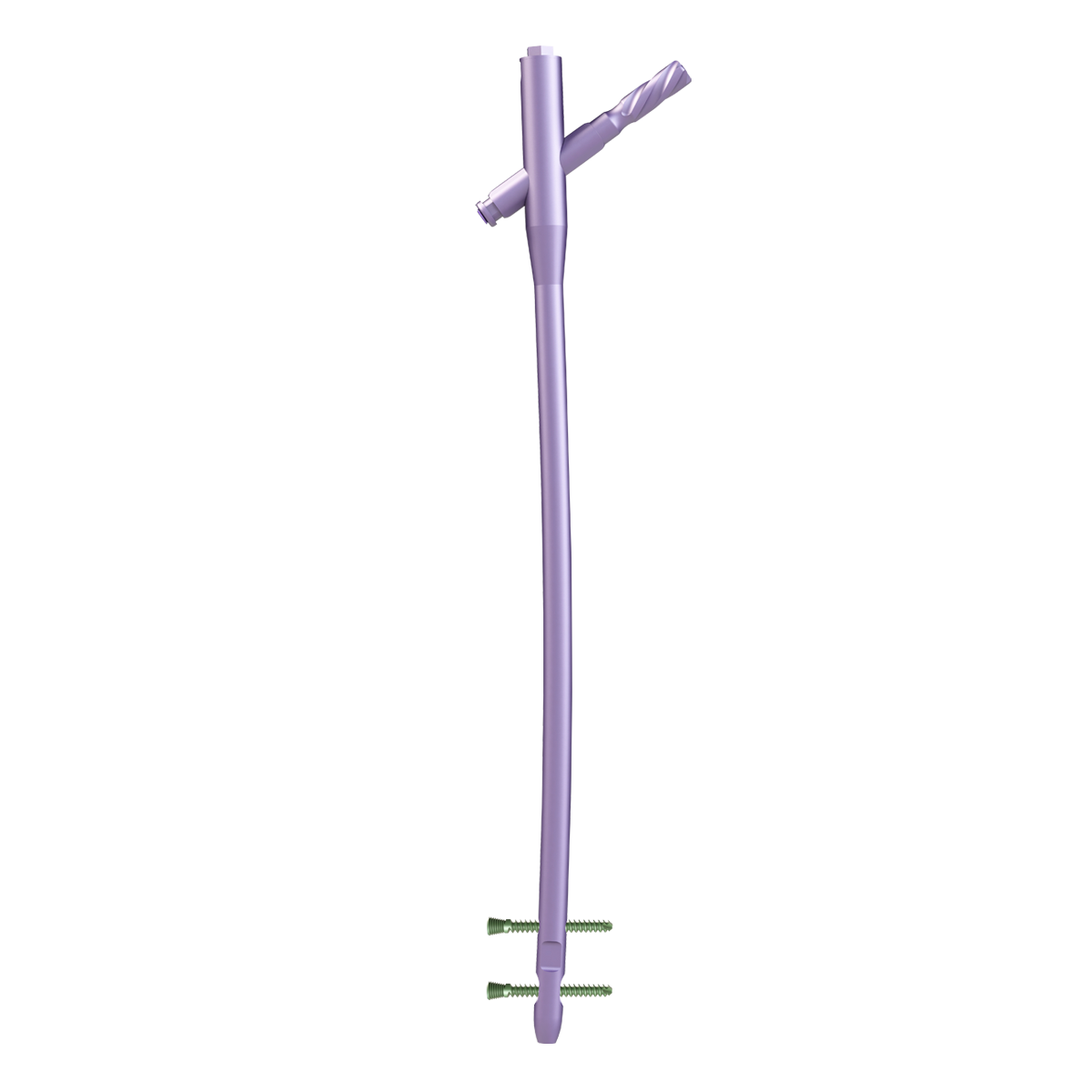

| ELIX Proximal Femoral Nail Antirotation | Large | |||
| Length | Diameter 9mm | Diameter 10mm | Diameter 11mm |
| 320mm | Left Code 282.320 / Right Code 283.320 | Left Code 284.320 / Right Code 285.320 | Left Code 286.320 / Right Code 287.320 |
| 340mm | Left Code 282.340 / Right Code 283.340 | Left Code 284.340 / Right Code 285.340 | Left Code 286.340 / Right Code 287.340 |
| 360mm | Left Code 282.360 / Right Code 283.360 | Left Code 284.360 / Right Code 285.360 | Left Code 286.360 / Right Code 287.360 |
| 380mm | Left Code 282.380 / Right Code 283.380 | Left Code 284.380 / Right Code 285.380 | Left Code 286.380 / Right Code 287.380 |
| 400mm | Left Code 282.400 / Right Code 283.400 | Left Code 284.400 / Right Code 285.400 | Left Code 286.400 / Right Code 287.400 |
Helical Blade |
Threaded Blade |
Locking Plug |
Screws |
75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm |
75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm |
0mm 5mm 10mm |
4.5mm Locking Screw for Intramedullary Nail (Code 166, Length 25mm-80mm) |
